P5mm Indoor Full Color LED Display
|Catalogue de Produit||Indoor Full Color LED Display|
|modalité de paiement||L/C, T/T, Western Union|
|Heure à jour||2019-11-16|
P5mmIndoor full color led display adopts SMD (Surface Mounted Device) or dotmatrix technology. Indoor full color display is clearer than outdoor in termsof picture quality. The brightness of indoor panel is about 2000 nits. It hasno need for indoor panel to use waterproof cabinets. Indoor panel includes wallmounted screen, single and tri-color screen. Full color indoor panel can beused to play video as advertising. Single and tri-color panel is usually usedto show important information or notice, even weather forecast. Wall mountedindoor screen always adopts front maintenance method because it is impossibleto open the cabinet from the back.

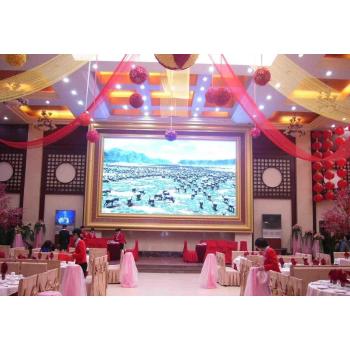

Indoor screen can usually be seen in all kinds of stations as message board, onthe stage as background wall and in football or basketball field as score signor side screen.
The best viewing distance of indoor panel is usually small in order toguarantee a clear look at the screen. So you can see the picture of indoordisplay clearly in a near distance. The size of indoor screen is not largebecause its viewing distance is nearer than outdoor screen.
P5mm Indoor full color led display:
1. Easy to maintain, Highresolution, Good contract, Less Weight, easy to install. Widely used as the informationbillboard in Airport, Railway station, and big shopping mall, concert and ect.
2. The brightness of indoor LED signs is adjustable so as to ensure differentenvironment.
3. Indoor SMD LED signs include PH4mm, PH5mm, PH6mm, PH7.62mm, PH10mm and PH12mm.P6mm and P7.62mm are most popular pixel pitch.
4. We make best design with high cost- efficiency according to the actual needsof our customers and we can offer OEM service as well.
5. We produce advertising LED display, rental LED display, traffic LED display,highway LED display, stadium LED display, curve shape LED display, textinformation LED display and so on.
Technical Specification (P5mm Indoor full color led display):
SMD3528 1R1G1B 3 in 1
Red: wave length: 625~630nm;300-400mcd
Calibrated brightness proportion ratio
R: G: B = 30%:60%:10%
3,500° -9,500° K(adjustable)
100 grade auto/manual-adjustment
View angle(degree)(50% brightness)
Horizontal: 160° (80° off center); Vertical: 160° (80° off center)
Readability viewing angle
Horizontal/ Vertical: 170° (85° off center)
DVI interface(DVI connector)
VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
IP65 front side/IP54 backside
Signal transmission direction
Operating temperature(Celsius degree)
Storage temperature(Celsius degree)
Front and back serving optional
Synchronous & asynchronous available
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
120/240 V AC single phase(50-60Hz)
Maximum power consumption(W/SQM)
Average power consumption(W/SQM)
Screen operation mode(scan/static)
Recommend Optimal Viewing Distance: Minimum & Maximum
2 standard cabinets in a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM)
Wooden case/carton/flight case(optional)
