P20mm Curtain Mesh Rental LED Display

P20mm Curtain Mesh Rental LED Display

P20mm Curtain Mesh Rental LED Display
P20mm Curtain Mesh Rental LED DisplayP20mm Curtain Mesh Rental LED DisplayP20mm Curtain Mesh Rental LED DisplayP20mm Curtain Mesh Rental LED DisplayP20mm Curtain Mesh Rental LED Display
Catalogue de ProduitCurtain Mesh LED Display
AlbumAgrandir
ModèleCM-P20MM
Cabinet size640mm x 640mm
waterproofI65
Brightness>4500CD/sqm
Cabinet weight10.5KG/pc
PortFOB SHENZHEN
modalité de paiementL/C, T/T, Western Union
Heure à jour2019-06-21
Info en détails

Introduction:

P20mm CurtainMesh Rental led display:

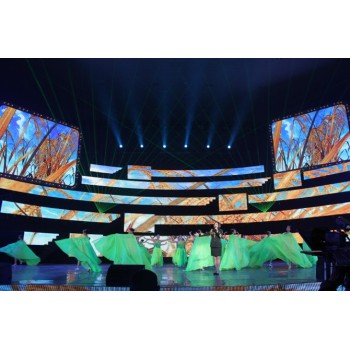

OutdoorIndoor mesh Curtain Stage background LED Display is used for digital backgroundstages in studios, Event, and presents virtual scenes. Outdoor Indoor meshCurtain Stage background LED Display can also play various visualization andlighting changes in brilliant effects, which designed by professional designersto show their endless artistic charm. Full-color display video wall can becomposed by multiple modules to display real-time video images with real-timebroadcast system. It can produce vivid and clear images. Outdoor Indoor meshCurtain Stage background LED Display cabinet is very lighter and thickness,more easy for installations and installation, Also provide convenience way forrepairing and transportation by flight cases packaged.


Features:

P20mmCurtain Mesh Rental led display:

1.Use for stage background, maindisplay screen, advertisementand removable rent;

2.Easy to bend fit for special shape and nonstandard place;

3.Easy to replace and maintain, low power consumption, light in weight, long lifespan;

4.It is applied sealed glue to be waterproof, shockproof, dustproof;

5.Ideal choice for various indoor and outdoor stage uses.


TechnicalSpecification (P20mm Curtain Mesh Rental led display):

1

Display brightness

>5,000  CD/M2

2

Brightness adjustment

256 grade  automatic, 8 grade manual

3

   Drive Mode

1/4scan

4

View Angle

120 degreesleft and right view angle

5

View Distance

15-400  meters

6

Grey Scale

256 grades

7

Display Colors

16M(top is 4.4trillion)

8

Frame rate

60 Hz

9

Refresh rate

>400HZGuarantee that the picture will not tingle  when the pick up camera is kinescoping

10

Control Mode

To be synchronized with computer monitor

11

Data Transmission

Parallel RS422 mode

12

Screen Lifespan

>100,000 hours

13

Blind Spot Rate

≤0.0003

14

Operating Voltage

AC100V±240V  5060HZ

15

Screen Body Power Consumption

Max: 350w/M2Average: 120w/M2

16

Color Temperature

6,500K±500

17

Screen body weight

15 KG/ M2

18

Control Distance

120 meterswithout relay)(optical fiber transmission 500M-10,000M

19

System Working Environment Temperature

-20℃~+60

20

System Working environment humidity

10%—95%RH

21

System Operating Platform

WINDOWSWIN98WIN2000 WIN XPfriendly interface, Keep the interface for  the secondary development
