P8mm Indoor Advertising LED Display video wall mounted

P8mm Indoor Advertising LED Display video wall mounted

P8mm Indoor Advertising LED Display video wall mounted
P8mm Indoor Advertising LED Display video wall mountedP8mm Indoor Advertising LED Display video wall mounted
Catalogue de ProduitAdvertising LED Display Screen
AlbumAgrandir
ModèleIA-P8MM
Resolution15625
Brightness>2000CD/sqm
PortFOB SHENZHEN
modalité de paiementL/C, T/T, Western Union
Heure à jour2019-11-19
Info en détails

Introduction:

P8mm Indoor wall mounted led display adopts SMD (Surface Mounted Device) or dotmatrix technology. Indoor full color display is clearer than outdoor in termsof picture quality. The brightness of indoor panel is about 2000 nits. It hasno need for indoor panel to use waterproof cabinets. Indoor panel includes wallmounted screen, single and tri-color screen. Full color indoor panel can beused to play video as advertising. Single and tri-color panel is usually usedto show important information or notice, even weather forecast. Wall mountedindoor screen always adopts front maintenance method because it is impossibleto open the cabinet from the back.

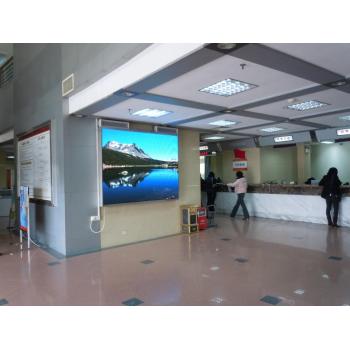

Indoor screen can usually be seen in all kinds of stations as message board, onthe stage as background wall and in football or basketball field as score signor side screen.

The best viewing distance of indoor panel is usually small in order toguarantee a clear look at the screen. So you can see the picture of indoordisplay clearly in a near distance. The size of indoor screen is not largebecause its viewing distance is nearer than outdoor screen.

Features

P8mm Indoor wall mounted led display:

1. Easy to maintain, Highresolution, Good contract, Less Weight, easy to install. Widely used as the informationbillboard in Airport, Railway station, and big shopping mall, concert and ect.
2. The brightness of indoor LED signs is adjustable so as to ensure differentenvironment.
3. Indoor SMD LED signs include PH4mm, PH5mm, PH6mm, PH7.62mm, PH10mm and PH12mm.P6mm and P7.62mm are most popular pixel pitch.
4. We make best design with high cost- efficiency according to the actual needsof our customers and we can offer OEM service as well.
5.We produce advertising LED display, rental LED display, traffic LED display,highway LED display, stadium LED display, curve shape LED display, textinformation LED display and so on.

If you are interested in our LED Display products, Please view our website at www.pstled.com or www.porstarled.net and contact with our sales team directly by email at sales@porstarled.net.

Technical Specification (P8mm Indoor wall mounted led display):

Pixel configuration

SMD3528 1R1G1B 3 in 1

LEDs configuration

  Red: wave length: 625~630nm;300-400mcd
  Green: wave length: 525~530nm;600-800mcd
  Blue: wave length: 470~475nm;100-150mcd

Pixel pitch(mm)

8

Pixel density

15625

Calibrated brightness(cd/sqm,nit)

1600 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500° -?9,500° K(adjustable)

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 160° (80° off center);  Vertical: 160° (80° off center)

Readability viewing angle

Horizontal/ Vertical: 170° (85° off  center)

Color capability

4.4 trillion

Refresh rate(Hz)

>1200 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54 backside

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30-65'

Storage temperature(Celsius degree)

-35-?70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF  wireless,GPRS

Power

120/240 V  AC single phase(50-60Hz)

Maximum power consumption(W/SQM)

500

Average power consumption(W/SQM)

200

Screen operation mode(scan/static)

1/8

Module configuration(Pixels quantities of  the module)

Length

32

Height

16

Module dimensions(mm)

Length

256

Height

128

Cabinet configuration

Length

4

Height

6

Cabinet dimensions(mm)

Length

1024

Height

768

Width

170

Screen configuration(Finished complet  screen system)

Length

4

Height

3

Screen dimensions(m)

Length

4.0960

Height

2.3040

Screen Size

SQM

9.4372

Recommend Optimal Viewing Distance: Minimum  & Maximum

Min

5

Max

109

Resolution ratio(dots/pixels)

Length

512

Height

288

Aspect Ratio(L:H)

1.77778

Packaging configuration

2 standard cabinets in  a packing  case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM)

Packing material

Wooden case/carton/flight case(optional)

Packing quantities

6

Packing volume(CBM)

3

Packing  Dimensions(mm)

Length

1129

Height

973

Width

520

Packing weight(KG)

net

354

gross

478
