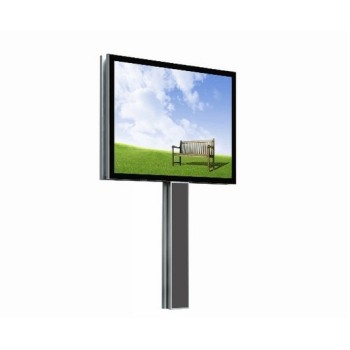

P12mm Single Column LED Screen Panel
|Catalogue de Produit||Advertising LED Display Screen|
|modalité de paiement||L/C, T/T, Western Union|
|Heure à jour||2019-11-18|
P12mm Single Column LED Screen Panel adopts physical and virtual pixel technology which makes the picture moreclear and vivid, no flicker and blind dots. The PH12mm outdoor full coloradvertising LED display screen is manufactured in a waterproof and dustproofdesign so it can work very well under rain and sunshine. It can be assembled,disassembled and reparied very easy, it is an ideal product for any kindadvertisements. Wide application field: advertising LED display, stadiumperimeter LED display, mobile led display for mobile media, shopping mall LEDdisplay for logo showing, bank & stock exchange LED display for ratesshowing, train & bus station, airport, telecommunication LED screen systemfor information showing and instruction, stage performances and so on.
Features & Technical Specification:
P12mm Single Column LED Screen Panel:
1. Wide application field: advertising LED display, stadium perimeter LEDdisplay, mobile led display for mobile media, shopping mall LED display for logoshowing, bank & stock exchange LED display for rates showing, train &bus station, airport, telecommunication LED screen system for informationshowing and instruction, stage performances and so on.
2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high levelto ensure a vivid image of our LED screen system.
3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictlyselected LED chip to ensure the long life time and high brightness of our LEDscreen system.
4. Very high quality and Clear vivid image quality: even in direct, full-onsunlight to ensure you attracts more audience to get short ROI of your LEDscreen's investment.
5. High Brightness of LED Display: 7500-nit brightness(for outdoor fullcolor)(more than 2000 nits brightness for indoor full color) capacitythroughout product lifetime of the LED display.
6. Easy Installation & Using : easy & simple installation interface anduser friendly software to ensure the user friendly interface of the LED screensystem.
7. Convenient Servicing: Front or rear led display cabinet access make themaintains work very convenient and low cost to help you concentrate more timeand energy on your main marketing promotion business.
TechnicalSpecification(P12mm Single Column LED Screen Panel):
Red: wave length: 625~630nm;1100-1300mcd
Calibrated brightness proportion ratio
R: G: B = 30%:60%:10%
3,500° -9,500° K(adjustable)
100 grade auto/manual-adjustment
View angle(degree)(50% brightness)
Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)
Readability viewing angle
Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)
DVI interface(DVI connector)
VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
IP65 front side/IP54 backside
Signal transmission direction
Operating temperature(Celsius degree)
Storage temperature(Celsius degree)
Front and back serving optional
Synchronous & asynchronous available
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
120/240 V AC single phase(50-60Hz)
Maximum power consumption(W/SQM)
Average power consumption(W/SQM)
Screen operation mode(scan/static)
Module configuration(Pixels quantities of the module)
Recommend Optimal Viewing Distance: Minimum & Maximum
2 standard cabinets in a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM)
Wooden case/carton/flight case(optional)
