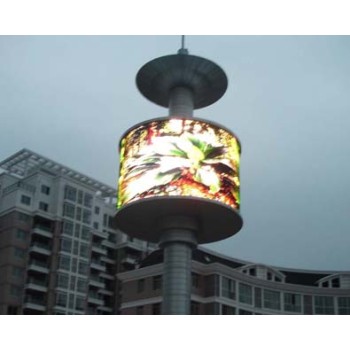

P5mm Full Color Cylindrical LED Display for Advertising

P5mm Full Color Cylindrical LED Display for Advertising

P5mm Full Color Cylindrical LED Display for Advertising
P5mm Full Color Cylindrical LED Display for AdvertisingP5mm Full Color Cylindrical LED Display for Advertising
Catalogue de ProduitAdvertising LED Display Screen
AlbumAgrandir
ModèleIA-P5MM
Resolution40000dots/SQM
Refresh rate>1200HZ
PortFOB SHENZHEN
modalité de paiementL/C, T/T, Western Union
Heure à jour2019-04-22
Info en détails

Introduction:

P5mm Full Color Cylindrical LED Display for Advertising adopts SMD (Surface Mounted Device) or dotmatrix technology. Indoor full color display is clearer than outdoor in termsof picture quality. The brightness of indoor panel is about 2000 nits. It hasno need for indoor panel to use waterproof cabinets. Indoor panel includes wallmounted screen, single and tri-color screen. Full color indoor panel can beused to play video as advertising. Single and tri-color panel is usually usedto show important information or notice, even weather forecast. Wall mountedindoor screen always adopts front maintenance method because it is impossibleto open the cabinet from the back.

Indoor screen can usually be seen in all kinds of stations as message board, onthe stage as background wall and in football or basketball field as score signor side screen.

The best viewing distance of indoor panel is usually small in order toguarantee a clear look at the screen. So you can see the picture of indoordisplay clearly in a near distance. The size of indoor screen is not largebecause its viewing distance is nearer than outdoor screen.

Features:

P5mm Full Color Cylindrical LED Display for Advertising:

1. Easy to maintain, Highresolution, Good contract, Less Weight, easy to install. Widely used as the informationbillboard in Airport, Railway station, and big shopping mall, concert and ect.

2. The brightness of indoor LED signs is adjustable so as to ensure differentenvironment.

3. Indoor SMD LED signs include PH4mm, PH5mm, PH6mm, PH7.62mm, PH10mm and PH12mm.P6mm and P7.62mm are most popular pixel pitch.

4. We make best design with high cost- efficiency according to the actual needsof our customers and we can offer OEM service as well.

5. We produce advertising LED display, rental LED display, traffic LED display,highway LED display, stadium LED display, curve shape LED display, textinformation LED display and so on.

If you are interested in our other LED Display Products, Please visit our website at www.pstled.com or www.porstarlet.net. and get best quotation from our sale team, please email at sales@porstarled.net.



Technical Specification (P5mm Full Color Cylindrical LED Display for Advertising):

Pixel configuration

SMD3528 1R1G1B 3 in 1

LEDs configuration

 Red: wave length: 625~630nm;300-400mcd
  Green: wave length: 525~530nm;600-800mcd

  Blue: wave length: 470~475nm;100-150mcd

Pixel pitch(mm)

5

Pixel density

40000

Calibrated brightness(cd/sqm,nit)

3200 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500° -9,500°  K(adjustable)

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 160° (80° off center); Vertical: 160° (80° off center)

Readability viewing angle

Horizontal/ Vertical: 170° (85° off center)

Color capability

4.4 trillion

Refresh rate(Hz)

>1200 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54 backside

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30-65'

Storage temperature(Celsius degree)

-35-70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 V  AC single phase(50-60Hz)

Maximum power consumption(W/SQM)

800

Average power consumption(W/SQM)

320

Screen operation mode(scan/static)

1/8

Module configuration

Length

32

Height

32

Module dimensions(mm)

Length

160

Height

160

Cabinet configuration

Length

4

Height

4

Cabinet dimensions(mm)

Length

640

Height

640

Width

170

Screen configuration

Length

4

Height

3

Screen dimensions(m)

Length

2.5600

Height

1.9200

Screen Size

SQM

4.9152

Recommend Optimal Viewing Distance: Minimum & Maximum

Min

3

Max

68

Resolution ratio(dots/pixels)

Length

512

Height

384

Aspect Ratio(L:H)

1.33333

Packaging configuration

2 standard cabinets in  a packing case(1 cabinet in 1 packing case  when the unit cabinet is more than 1.5SQM)

Packing material

Wooden case/carton/flight case(optional)

Packing quantities

6

Packing volume(CBM)

2

Packing  Dimensions(mm)

Length

745

Height

845

Width

520

Packing weight(KG)

net

184

gross

249
