P16mm Virtual LED Display case in Philippine For Advertising

P16mm Virtual LED Display case in Philippine For Advertising

P16mm Virtual LED Display case in Philippine For Advertising
P16mm Virtual LED Display case in Philippine For AdvertisingP16mm Virtual LED Display case in Philippine For AdvertisingP16mm Virtual LED Display case in Philippine For AdvertisingP16mm Virtual LED Display case in Philippine For AdvertisingP16mm Virtual LED Display case in Philippine For Advertising
Catalogue de ProduitLED Display Cases
AlbumAgrandir
ModèleOA-P16MMV
LEDs2R1G1B DIP546
Resolution15624dots/sqm
Cabinet size1024mm x 768mm
Waterproof LevelIP65
Brightness>6500CD/sqm
PortFOB SHENZHEN
modalité de paiementL/C, T/T, Western Union
Heure à jour2019-04-19
Info en détails

Introduction:

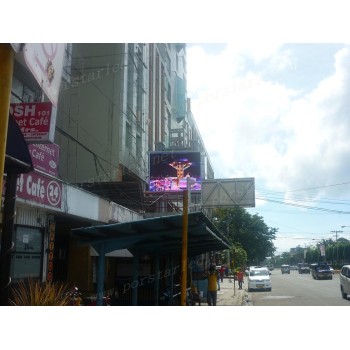

P16mm Virtual LED Display Screen 4.096m x 3.072m:
Installation Place: Philippine.

LED Display Pitch: P16MM Virtual 2R1G1B

LED Display Cabinet: 4pcs (1024mm) x 4pcs (768mm)

LED Display Size: 4.096M X 3.072M

Application:Showing all kinds of Advertising of Crown hotel (5 stars hotel in Philippine),and double Faces LED Displays. We take Top Quality Epistar LED Chips from Taiwan, andMeanwell power supply, completely waterproof LED Display cabinet

Technical Specification(P16mm Virtual LED Display Screen 4.096m x 3.072m):

Pixel configuration

DIP546 2R1G1B

LEDs configuration

  Red: wave length: 625~630nm;1100-1300mcd
  Green: wave length: 525~530nm;1900-2400mcd
  Blue: wave length: 470~475nm;500-700mcd

Pixel pitch(mm)

16

Pixel density

15624

Calibrated brightness

8500 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500° ---9,500° K(adjustable)

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off  center)

Readability viewing angle

Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off  center)

Color capability

4.4 trillion

Refresh rate(Hz)

>800 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54 backside

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30--65'

Storage temperature(Celsius degree)

-35---70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 V  AC single phase(50-60Hz)

Maximum power consumption(W/SQM)

900

Average power consumption(W/SQM)

360

Screen operation mode(scan/static)

static: 1/1

Module configuration(Pixels quantities of the module)

Length

16

Height

8

Module dimensions(mm)

Length

256

Height

128

Cabinet configuration

Length

4

Height

6

Cabinet dimensions(mm)

Length

1024

Height

768

Width

170

Screen configuration(Finished complet screen system)

Length

4

Height

4

Screen dimensions(m)

Length

4.096

Height

3.0720

Screen Size

SQM

12.586

Recommend Optimal Viewing Distance: Minimum & Maximum

Min

10

Max

218

Resolution ratio(dots/pixels)

Length

256

Height

192

Aspect Ratio(L:H)

1.66667

Packaging configuration

2 standard cabinets in  a packing case(1 cabinet in 1 packing case  when the unit cabinet is more than 1.5SQM)

Packing material

Wooden case/carton/flight case(optional)

Packing quantities

8

Packing volume(CBM)

4

Packing  Dimensions(mm)

Length

1129

Height

973

Width

520

Packing weight(KG)

net

1180

gross

1593
