New Project P12mm Outdoor LED Display Panel for Advertising

New Project P12mm Outdoor LED Display Panel for Advertising

New Project P12mm Outdoor LED Display Panel for Advertising
Catalogue de ProduitLED Display Cases
AlbumAgrandir
ModèleOA-P12MM
LEDs1R1G1B DIP346
Resolution6944dots/sqm
Cabinet size960mm x 960mm
Brightness>7000CD/sqm
Waterproof levelIP65
PortFOB SHENZHEN
modalité de paiementL/C, T/T, Western Union
Heure à jour2019-09-18
Info en détails

Introduction:

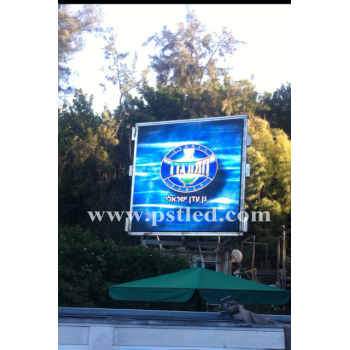

P10mm Outdoor Advertising LED Screen, 3.84m x 3.84m:
Installation Place: Israel

LED DisplayPitch:P12MM 1R1G1B

LED DisplayCabinet:4pcs (960mm) x 4pcs (960mm)

LED DisplaySize:3.84M X 3.84M

Application: The screen is installed in swimming pool gargen of place of Israel Haifa city for advertising, wetake Top Quality Epistar LED Chips and Meanwell power supply, completely Super waterproofLED Display cabinet, Because the led screen near the Sea, should be avoided thehigh salty wind.

Technical Specification (P10mm Outdoor LED Screen 3.84m x 3.84m):

Pixel configuration

DIP346 1R1G1B

LEDs configuration

  Red: wave length: 625~630nm;1100-1300mcd
  Green: wave length: 525~530nm;1900-2400mcd
  Blue: wave length: 470~475nm;500-700mcd

Pixel pitch(mm)

12

Pixel density

6944

Calibrated brightness

8500 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500° ---9,500° K(adjustable)

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off  center)

Readability viewing angle

Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off  center)

Color capability

4.4 trillion

Refresh rate(Hz)

>800 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54 backside

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30--65'

Storage temperature(Celsius degree)

-35---70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 V  AC single phase(50-60Hz)

Maximum power consumption(W/SQM)

900

Average power consumption(W/SQM)

360

Screen operation mode(scan/static)

static: 1/4

Module configuration(Pixels quantities of the module)

Length

16

Height

16

Module dimensions(mm)

Length

192

Height

192

Cabinet configuration

Length

5

Height

5

Cabinet dimensions(mm)

Length

960

Height

960

Width

170

Screen configuration(Finished complet screen system)

Length

4

Height

4

Screen dimensions(m)

Length

3.84

Height

3.84

Screen Size

SQM

14.759

Recommend Optimal Viewing Distance: Minimum & Maximum

Min

10

Max

218

Resolution ratio(dots/pixels)

Length

320

Height

320

Aspect Ratio(L:H)

1.66667

Packaging configuration

2 standard cabinets in  a packing case(1 cabinet in 1 packing case  when the unit cabinet is more than 1.5SQM)

Packing material

Wooden case/carton/flight case(optional)

Packing quantities

6

Packing volume(CBM)

3

Packing  Dimensions(mm)

Length

1105

Height

1050

Width

520

Packing weight(KG)

net

1180

gross

1593
