CREE Chip Outdoor LED Billboard Banner for Advertising

CREE Chip Outdoor LED Billboard Banner for Advertising

CREE Chip Outdoor LED Billboard Banner for Advertising
Catalogue de ProduitLED Display Cases
AlbumAgrandir
ModèleOA-P10MM
LEDsDIP346
Cabinet size1280mm x 960mm
Brightness>7500CD/sqm
Wagterproof LevelIP65
PortFOB SHENZHEN
modalité de paiementL/C, T/T, Western Union
Heure à jour2019-09-19
Info en détails

Introduction:

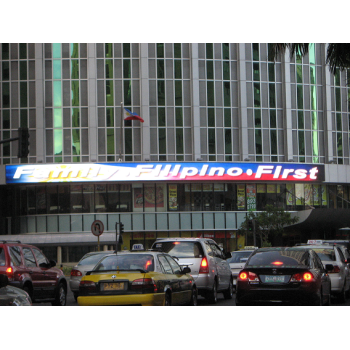

P10mm Outdoor Advertising LED Billboard banner, 12.8m x 0.96m:
Installation Place: Philippine

LED Display Pitch: P10MM 1R1G1B

LED Display Cabinet: 10pcs (1280mm) x 1pcs (960mm)

LED Display Size: 12.8M X 0.96M

Application: In Business Centeras LED Billboard banner which shows all kinds of Advertising in the building ofbank, We take Top Quality CREE LED Chips and Meanwell power supply, completely Superwaterproof LED Display cabinet, Because the led screen without any structurefor installation..

Technical Specification (P10mm Outdoor Advertising LED Billboard banner):

Pixel configuration

DIP346 1R1G1B

LEDs configuration

Red: wave length:  625~630nm;1100-1300mcd
  Green: wave length: 525~530nm;1900-2400mcd
  Blue: wave length: 470~475nm;500-700mcd

Pixel pitch(mm)

10

Pixel density

10000

Calibrated brightness

8500 nits(adjustable)

Calibrated brightness  proportion ratio

R: G: B = 30%:60%:10%

Color temperature

3,500° ---9,500°  K(adjustable)

Contrast ratio

4,500:1

Brightness  adjustment(dimming)

100 grade  auto/manual-adjustment

View angle(degree)(50%  brightness)

Horizontal: 120° (60° off  center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle

Horizontal: 150° (75° off  center); Vertical: 90° (+35°/-55° off center)

Color capability

4.4 trillion

Refresh rate(Hz)

>800 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI  connector)

Input signal

VGA, Video, AVI, MOV,  MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP54  backside

LED Drive

Constant-current drive

Lifetime(hours)(50%  brightness)

100,000 hours

Signal transmission  direction

Horizontal

Operating  temperature(Celsius degree)

-30--65'

Storage  temperature(Celsius degree)

-35---70'

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving  optional

Control mode

Synchronous &  asynchronous available

Communication options

Wire Ethernet, Fiber  Ethernet,RF wireless,GPRS

Power

120/240 V  AC single  phase(50-60Hz)

Maximum power  consumption(W/SQM)

900

Average power consumption(W/SQM)

360

Screen operation  mode(scan/static)

static: 1/4

Module  configuration(Pixels quantities of the module)

Length

16

Height

16

Module dimensions(mm)

Length

160

Height

160

Cabinet configuration

Length

8

Height

6

Cabinet dimensions(mm)

Length

1280

Height

960

Width

170

Screen  configuration(Finished complet screen system)

Length

10

Height

1

Screen dimensions(m)

Length

12.8

Height

0.96

Screen Size

SQM

12.288

Recommend Optimal Viewing  Distance: Minimum & Maximum

Min

10

Max

218

Resolution  ratio(dots/pixels)

Length

1280

Height

96

Aspect Ratio(L:H)

1.66667

Packaging configuration

2 standard cabinets  in  a packing case(1 cabinet in 1 packing case when the unit cabinet is  more than 1.5SQM)

Packing material

Wooden case/carton/flight  case(optional)

Packing quantities

6

Packing volume(CBM)

4

Packing   Dimensions(mm)

Length

1305

Height

1050

Width

520

Packing weight(KG)

net

1180

gross

1593
